125 AMP 8 Space 16 Circuits Outdoor Load Center Main Lug

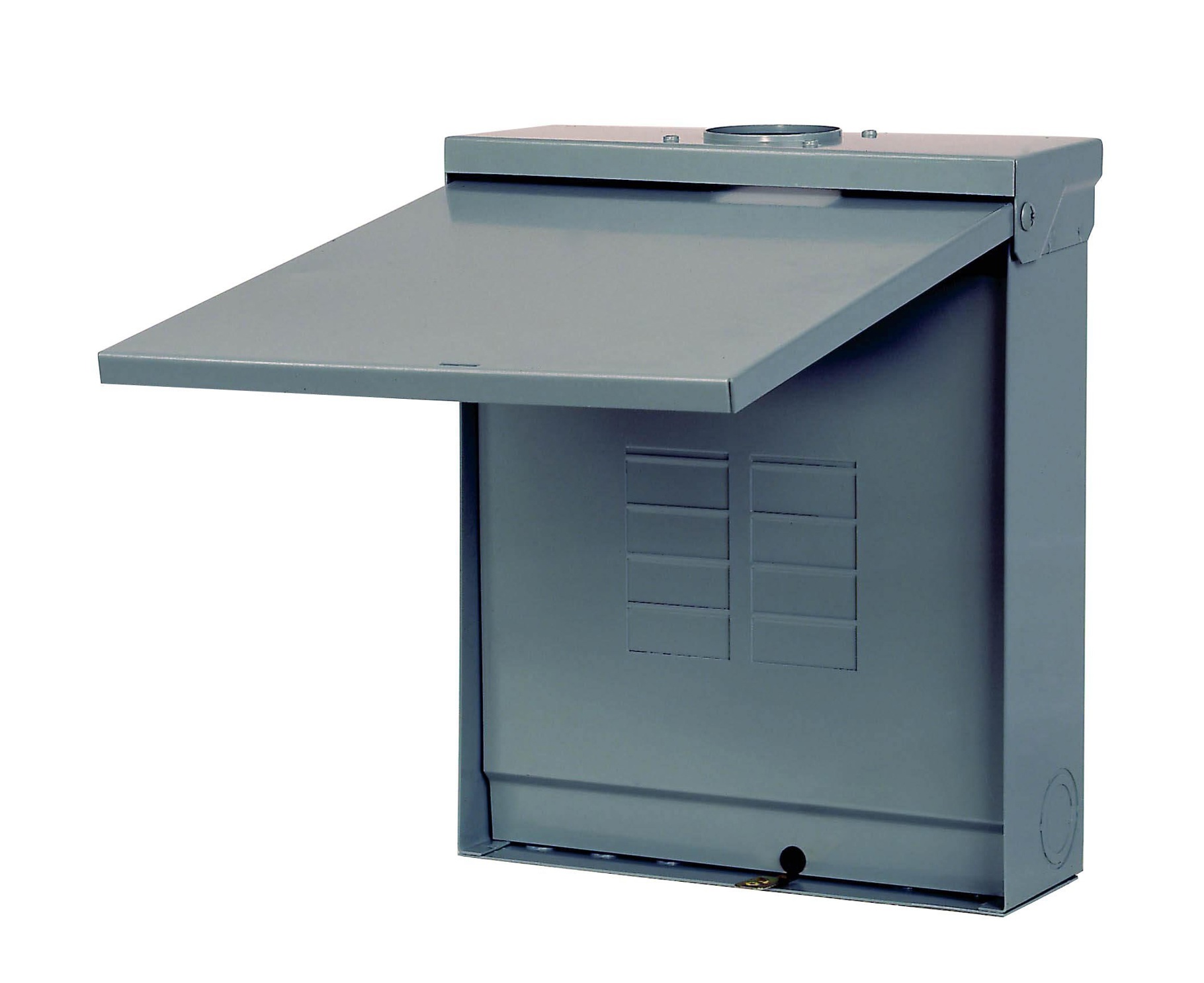

The Siemens Main Lug Loadcenter W0816ML1125CU is designed for a voltage rating of 120/240 VAC and has a current rating of 125 Amperes. It features a 1-Phase 3-Wire circuit configuration, accommodating a maximum of 16 circuits with eight spaces for 1-Pole breakers and four spaces for 2-Pole QP breakers. The load center utilizes a plug-in mounting for its QP main breaker and has an interrupting rating of 100 Kiloamperes. Constructed with copper bus material, it is housed in a NEMA 3R enclosure suitable for outdoor use, with a flush/surface cover type. The dimensions of the enclosure are 12-1/8 inches in width, 4-1/4 inches in depth, and 14-3/4 inches in height, and it is UL approved. Additionally, it includes a combination trim box.
